主要应用行业：自动化UV胶水粘合、线路板三防、线材焊点三防、LCD显示屏、手机、液晶屏保、工艺品滴胶固化、电子元件三防、摄像头、UV解胶、医疗消耗器材光固等
| 主机型号 controller | DGO-150100 | 显示屏 display | 7寸电阻式触摸屏 7-inch, resistive touch screen | |||||||
| 输入电压 input voltage | 180-240V.50/60HZ | 照射方式 irradiationmethod | 手动、自动、速度跟踪 Manual, automatic, speed tracking | |||||||
| 输入电流 | 5-10A | 功率调节 power regulation | 1~100% | |||||||
| 待机功耗 standby power consumption | 1.5KW | 照射时间 irradiation time | 长亮 not stop | |||||||
| 外形尺寸 dimension | L600*W450*H860MM | 使用环境温度 operating ambient temperature | 0℃~35℃ | |||||||
| 驱动电源品牌 drive power supply | 明伟MW/英可瑞 | 环境湿度 environment humidity | 30%~85%RH | |||||||
| 材质material | 冷轧板金 Cold rolled sheet metal | 重量weight | 约90kg | |||||||

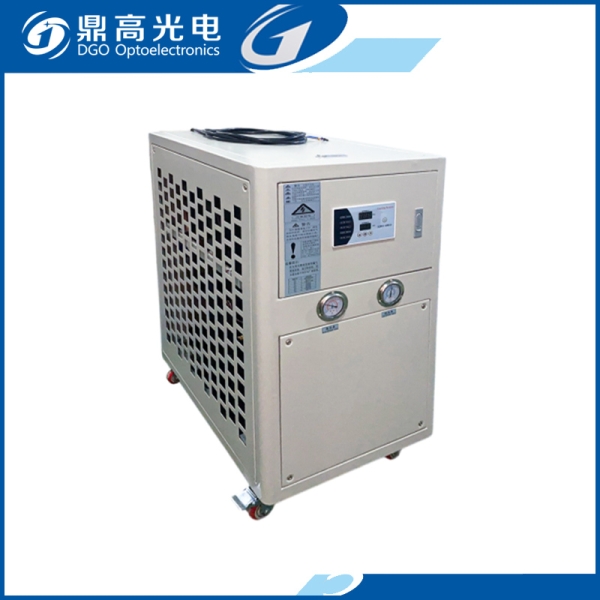

| 冷却方式 cooling method | 水冷循环 Water cooling cycle | 产品附件 accessori | 主机、LED灯头、控制线、电源线 Host, LED lamp head, control cable, power cable | |||||||
| 功能 function | ①可无极调光、速度跟踪Capable of infinite dimming and speed tracking ②超温报警、状态信号、故障报警、水流报警、Overtemperature alarm, status signal, fault alarm, water flow alarm ③通讯：RS232Communication: RS232 | |||||||||

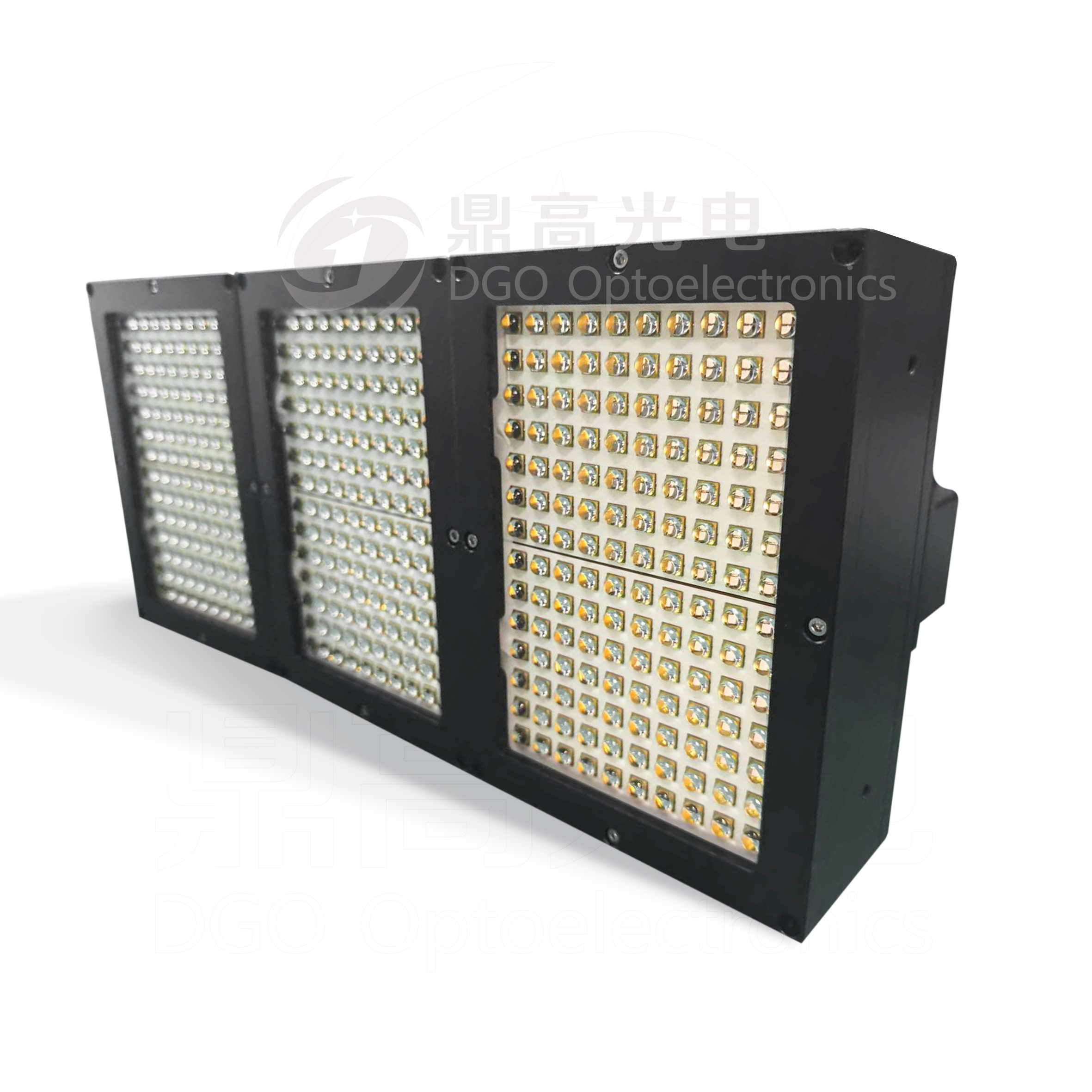

| 照射头型号 LED lamp model | 芯片 chip | 首尔：seoul viosys 三安 San An | ||||||||
| 电功率 Power | 1500W | 寿命 lifetime | 15000~20000H | |||||||
| 峰值波长 wavelength | 365/385/395/405nm | 照射高度 Irradiation height | 10-100mm | |||||||
| 光功率 UV intensity | 365nm~8000mW/CM 385/395/405~13000mW/CM | 使用环境温度 operating ambient temperature | 0℃~35℃ | |||||||
| 发光尺寸 Luminous window | 150*100mm | 环境湿度 environment humidity | 30%~85%RH | |||||||
| 冷却方式 cooling method | 水冷循环 Water cooling cycle | 材质material | 高导热铝 6063 high thermal conductivity aluminum | |||||||
| 外形尺寸 dimension | L180*W130*H156MM | 重量weight | 3kg | |||||||
